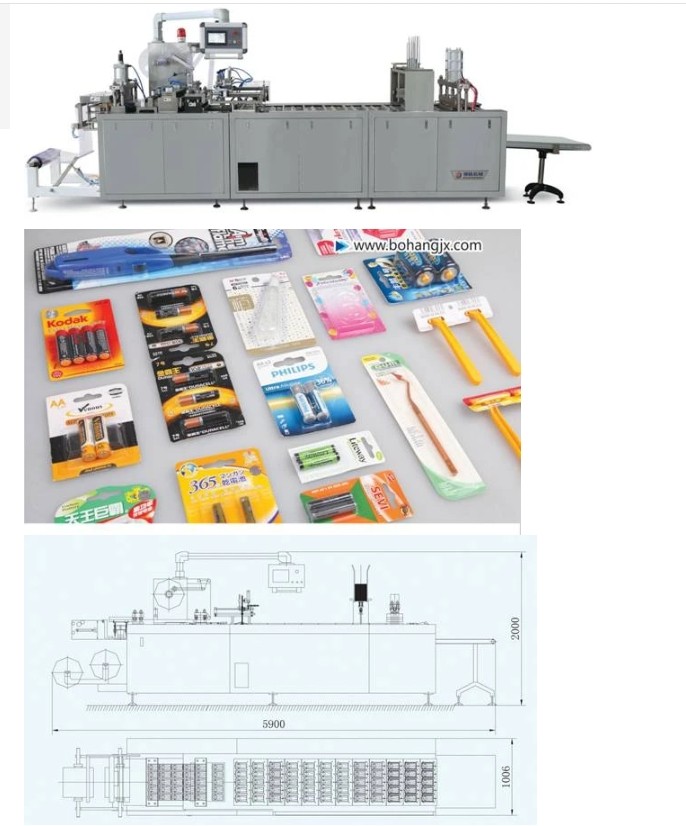

BH-570D chain-type paper and plastic packaging machine
BH-570D chain-type paper and plastic packaging machine
|
Cutting Frequency |
10-25 times/min |
|
|
Adjustable Travel Range |
35-160mm |
|
|
Max. Forming Area |
340 x 160mm |
|
|
Max. Forming Depth |
38mm(Special machine 50mm) |
|
|
Forming And Heating Power (Upper and Down) |
1.8KW(x2) |
|
|
Sealing and Heating Power |
4KW |
|
|
Total Power |
380V 50HZ(480V 50HZ)14KW |
|
|
Main Motor Power |
3KW |
|
|
Air Pump Volume Flow |
≥0.6m3/min |
|
|
Packing Materials |
Roll
|
≤400(Diameter) x 500(Width) x 0.2-0.5mm(Thickness) |
|
Paperboard |
≤570x200xO.5mm (LxWxH) |
|
|
Overall Dimensions |
(5900x1000x2000) mm (LxWxH) |
|
|
Weight |
2600Kg |
|
It can be applied to the various kinds of packaging for products-Metal fittings(battery, electronics, glue); Stationary(pencil sharpener, eraser, correction fluid,solid glue); motorcycle accessories(brake pad, sparking plug); Commodities(shaver, toothbrush, teat); Cosmetics(lipstick); Medicine(Safflower oil, Essential balm);toys(toy car); Medical equipment; Food and etc.
The functions include positive/negative pressure molding, Butterfly hook perforatior (Optional), Cutting, Auto-feeding, Cards lowering, Heat sealing,and Output. The structure is simple and easy to control.
It uses 304 stainless steal shell, which conforms to the GMP of national pharmaceutical industry,and it contains beautiful features, also easy to clean.
It adopts imported frequency control of motor speed, colorful control panel(Humancomputer interface), and PLC(Programmable Logic Controller System) that has high productivity with low noise. Simple operation process makes it more automatic and humane.
It uses servo motor drive steplessly and is easy to adjust; changing molds becomes easier, too.
Photoelectric control; the lack of PVC and cards can trigger buzzer alarm.
The separate-type design makes it convenient to transport and is free out of the elevator
Separated material devices can save a large quantity of packaging materials.
Molds can be designed according to special needs and auto-feeding device is alternative.

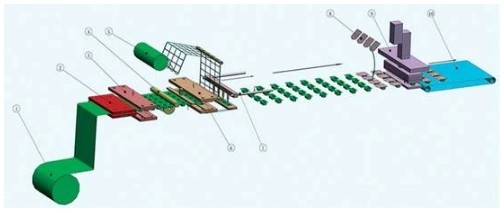

1、ROLL 2、Pre-heating 3、Blister Forming 4、Traction 5、Waste Material Collecting 6、Cutting 7、Picking up 8、Paperboard Placing 9、Heat Sealing 10、Output
It can be applied to the various kinds of packaging for products-stationery, industrial paperboard, plastic blister package widget, medical equipment, toys,battery, electronic product, automobile, motorcycle accessories, commodity, cosmetics, rubber products, tableware and cooker. For example: Medical injection, injection syringe, toy car, electronic torch, sparking plug, toothbrush, lipstick, mask, chopstick, shaver, scissor, hook, cleaning ball, bottle opener,correction fluid, ball-point pen, pencil, pencil sharpener, etc.
It can be applied to the various kinds of packaging for products-Metal fittings(battery, electronics, glue); Stationary(pencil sharpener, eraser, correction fluid,solid glue); motorcycle accessories(brake pad, sparking plug); Commodities(shaver, toothbrush, teat); Cosmetics(lipstick); Medicine(Safflower oil, Essential balm);toys(toy car); Medical equipment; Food and etc.
It Is suitable for packaging with Paper card and Plastic blister in the industrial of stationery, small hardware, medical equipment, toys, battery, electronic products, automobile and motorcycle fittings, commodity, cosmetic, rubber products, dinnerware, and kitchenware. For example, the medicine injection,syringe, toy car, flashlight, spark plugs, toothbrush, lipstick, facial mask, chopstick, shaver, scissors, hooks, cleaning balls, bottle openers, correction fluid,ball pen/pencil, sharpener, etc.
