Cutting Frequency |
10-25 times/min |
|
|
Adjustable Travel Range |
35-160mm |
|
|
Max. Forming Area |
340 x 160mm |
|
|
Max. Forming Depth |
38mm(Special machine 50mm) |
|
|
Forming And Heating Power (Upper and Down) |
1.8KW(x2) |
|
|
Sealing and Heating Power |
3.5KW |
|
|
Total Power |
380V 50HZ(480V 50HZ)10KW |
|
|
Main Motor Power |
1.5KW |
|
|
Air Pump Volume Flow |
≥0.6m3/min |
|
|
Packing Materials |
Roll
|
≤400(Diameter) x 350(Width) x 0.2-0.5mm(Thickness) |
|
Paperboard |
≤350x200xO.5mm (LxWxH) |
|
|
Overall Dimensions |
(3650x2500x1850) mm (LxWxH) |
|
|
Weight |
1800Kg |
|
It can be applied to the various kinds of packaging for products-stationery, industrial paperboard, plastic blister package widget, medical equipment, toys,battery, electronic product, automobile, motorcycle accessories, commodity, cosmetics, rubber products, tableware and cooker. For example: Medical injection, injection syringe, toy car, electronic torch, sparking plug, toothbrush, lipstick, mask, chopstick, shaver, scissor, hook, cleaning ball, bottle opener,correction fluid, ball-point pen, pencil, pencil sharpener, etc.
It's especially suitable for companies with low production capacity that has various products and acquires changing molds frequently.

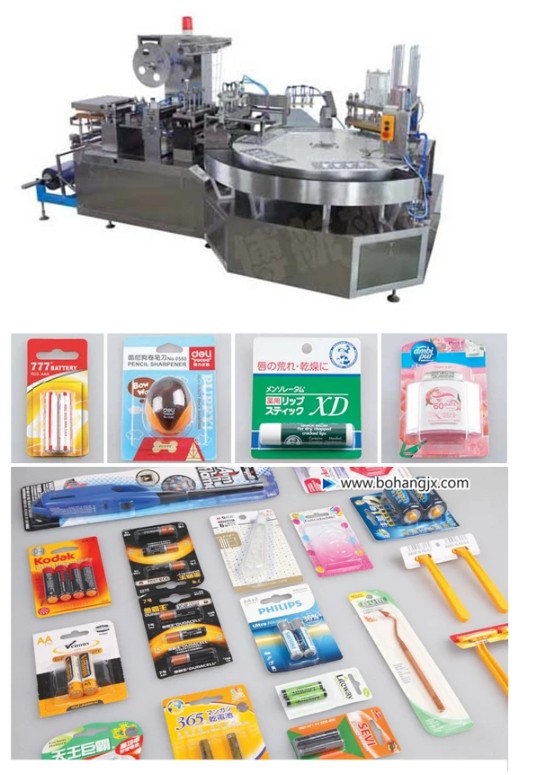

The assembly line consists of blister molding machine and rotating heat-sealing machine.
The positive/negative pressure molding, precise forming, make the product more beautiful.
Automation helps save labor work and material.
It uses servo motor drive steplessly and is easy to adjust.
The separate-type design makes it convenient to transport and is free out of the elevator.
Full humanity with low noise.
It's very easy to change the molds, thus improving the production efficiency.
Molds can be designed according to special needs and auto-feeding device is alternative.

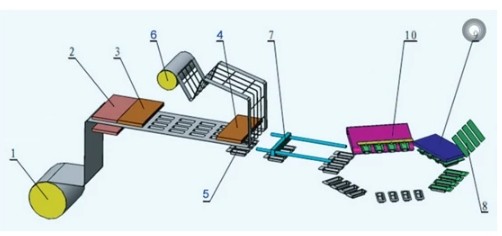

1、Plastic Material Releasing 2、Pre-heating 3、Forming 4、Cutting 5、Stripper 6、Material Scrap Edge Collecting 7、Tray conveying 8、Paperboard Placing 9、Heat Sealing 10、Output
It Is suitable for packaging with Paper card and Plastic blister in the industrial of stationery, small hardware, medical equipment, toys, battery, electronic products, automobile and motorcycle fittings, commodity, cosmetic, rubber products, dinnerware, and kitchenware. For example, the medicine injection,syringe, toy car, flashlight, spark plugs, toothbrush, lipstick, facial mask, chopstick, shaver, scissors, hooks, cleaning balls, bottle openers, correction fluid,ball pen/pencil, sharpener, etc.
It can be applied to the various kinds of packaging for products-Metal fittings(battery, electronics, glue); Stationary(pencil sharpener, eraser, correction fluid,solid glue); motorcycle accessories(brake pad, sparking plug); Commodities(shaver, toothbrush, teat); Cosmetics(lipstick); Medicine(Safflower oil, Essential balm);toys(toy car); Medical equipment; Food and etc.
Blister card packing machine is the new equipment which is developed By our technical departement based on the mature technology from pharmaceutical Packing machinery of more than ten years, and absorbing the working principle of Similar machine at home and abroad. It has the feature of advanced technology, Complete function, reasonable working process, easy operation, and convenient Maintenance.
