Product Detail

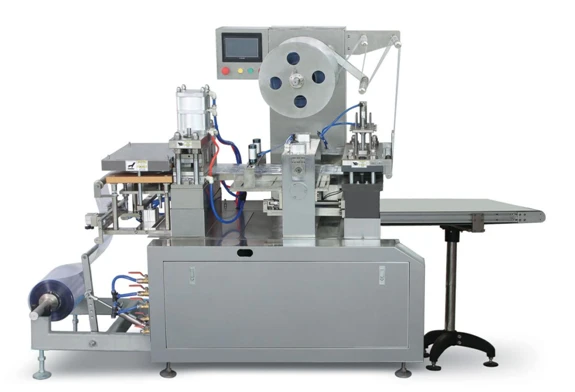

BHP-500B Tray Forming Machine

Main Technical Parameters

Items	BHP-500B	BHP-350B
Max. Cutting Speed	Plastic 15-35 times/min	Plastic 15-35 times/min
Adjustable Travel range	35-160mm	35-160mm
Max. Forming Area	480 × 160mm	350 × 160mm
Max. Forming Depth	40mm (Special 50mm )	40mm (Special 50mm )
Forming Heating Power	5KW	3.6KW
Total Power	380V 50HZ (220V 60HZ) 7KW	380V 50HZ (220V 60HZ) 5.5KW
Main Motor Power	2.2KW	1.5KW
Air flow	≥0.4m3/min	≥0.25m3/min
Dimensions	2500×l000×l700mm (LxWxH)	2500×900×l600mm (LxWxH)
Weight	1300Kg	950Kg

The equipment is suitable for forming plastic trays, for purposes of blister packaging of many industrials, like stationery, small hardware, medical equipment,toys, battery, electronic products, automobile and motorcycle fittings, commodity, cosmetic, rubber products, dinnerware, kitchenware, and so on. For example, the medicine injection, syringe, toy car, flashlight, spark plugs, toothbrush, lipstick, facial mask, chopstick, shaver, scissors, hooks, cleaning balls,bottle openers, correction fluid, ball pen/pencil, sharpener, etc.

Main Performance Characteristics

Positive/negative pressure Molding, simple structure, convenient operation.

304 stainless steel shell, conforms to the national pharmaceutical industry GMP requirements,beautiful appearance, easy to clean.

Adopt imported frequency control, color touch screen (man-machine interface) and PLC programmable control system, high yield, low noise, clear and simple operation, more advanced automation, more humane.

Adopt servo motor stepless stroke control, stroke adjustment is simple, easy to changeover the molds.

Photoelectric control, full automatic.

Compact structure easy to transport and lift access.

The respective plastic material feeding device, can save a lot of packing material, scrap edge can be collected.

Molds designed according to requirements and automatic overlapping equipment is optional.

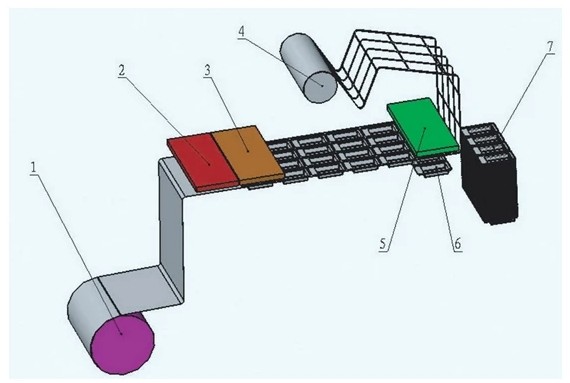

Schematic diagram

1、Plastic Material Releasing 2、Pre-heating 3、Forming 4、Material Scrap Edge Collecting 5、Cutting 6、Stripper 7、Output(Automatic Overlapping is Optional)
